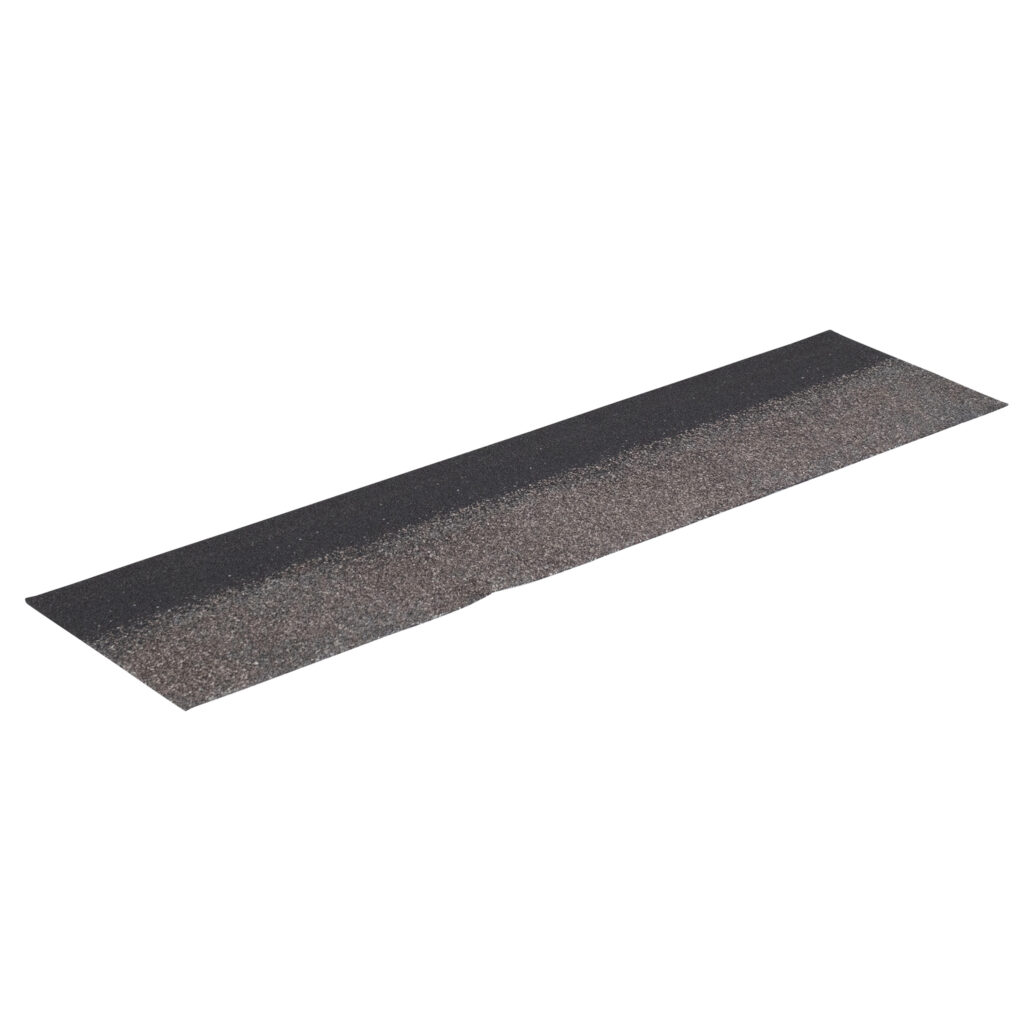

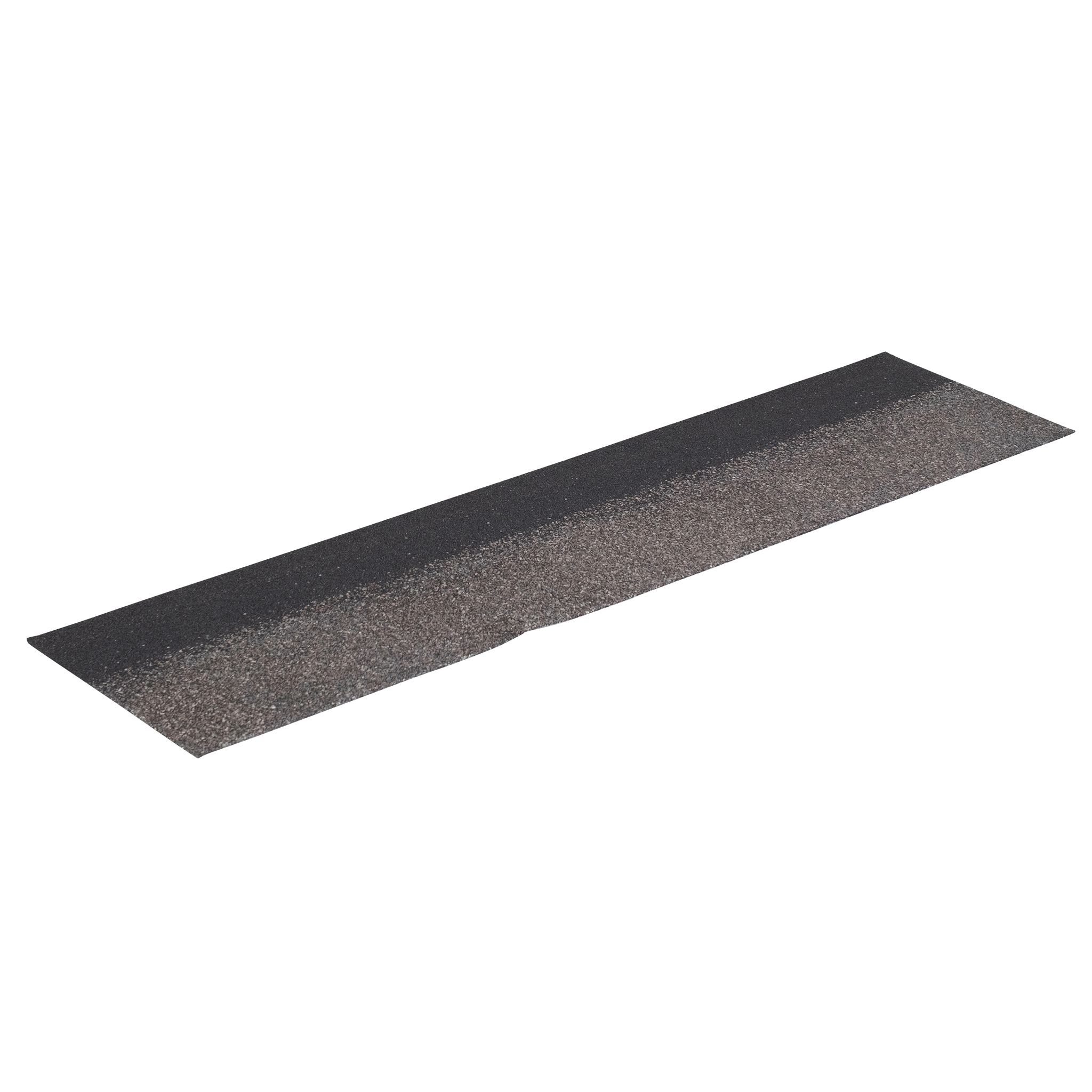

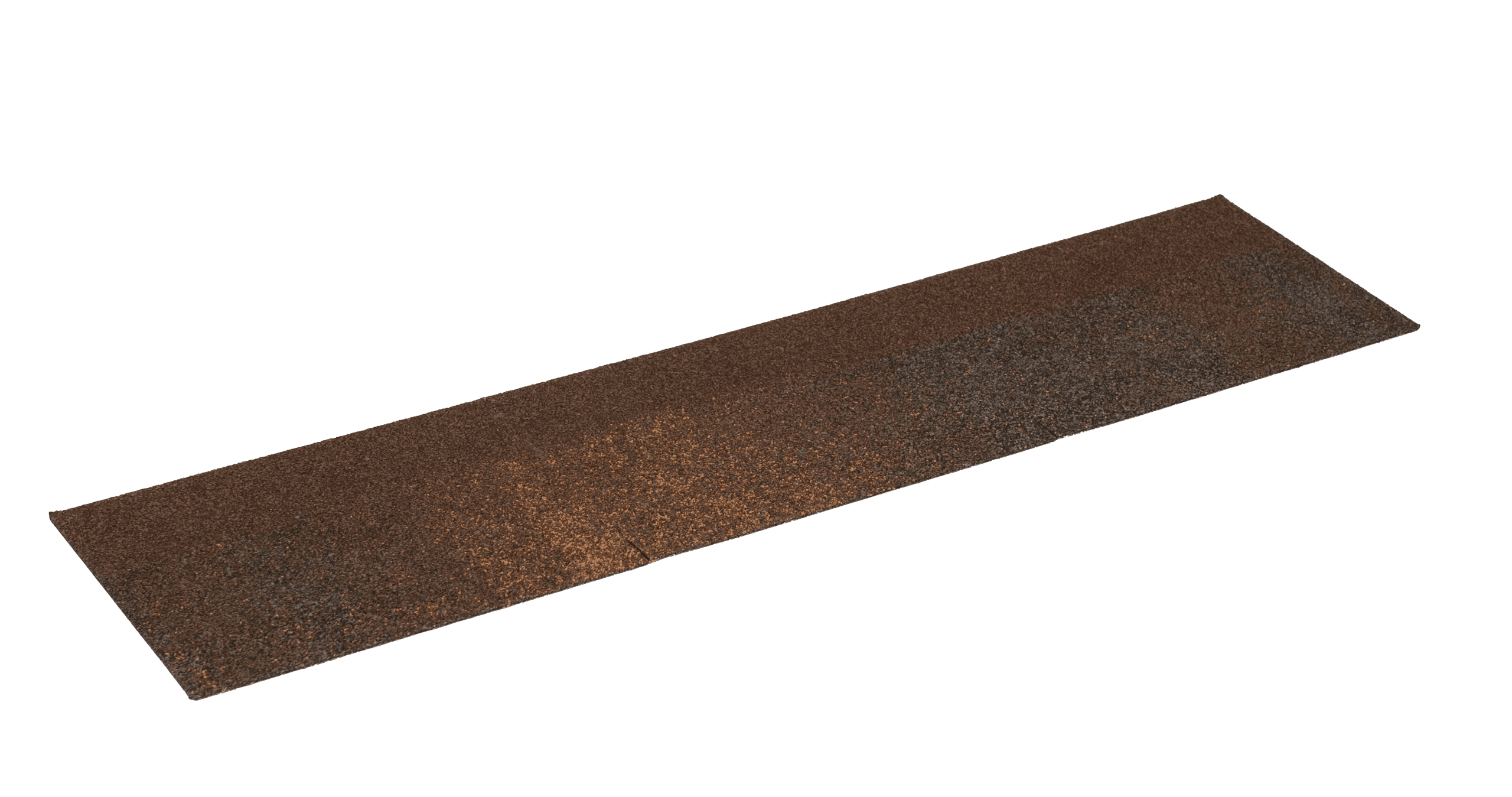

Katepal Eaves and Ridge Shingles
Katepal Eaves and Ridge shingle is designed as both the first shingle layer for eaves and a ridge shingle for the roof ridge. It has a coloured-granule finish and the underneath is coated in sand with an adhesive layer under protective plastic film.
Red
Green
Brown
Grey
Black
Silver Coral
Graphite Grey
Bedrock Red
Moss
Barkwood Brown
Copper Brown
Desert Brown
Copper
Terracotta
Mahogany
Arundel
Eilean
Instructions and Materials
Field of use

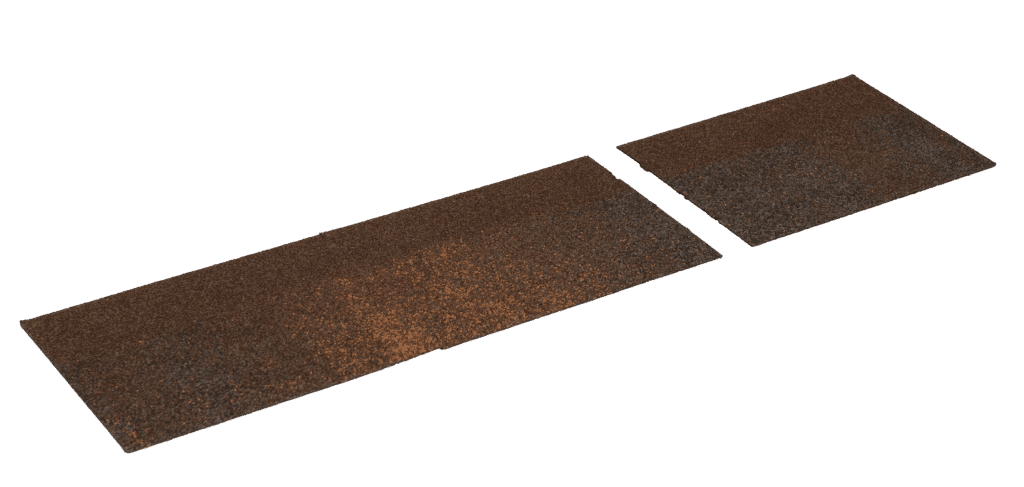

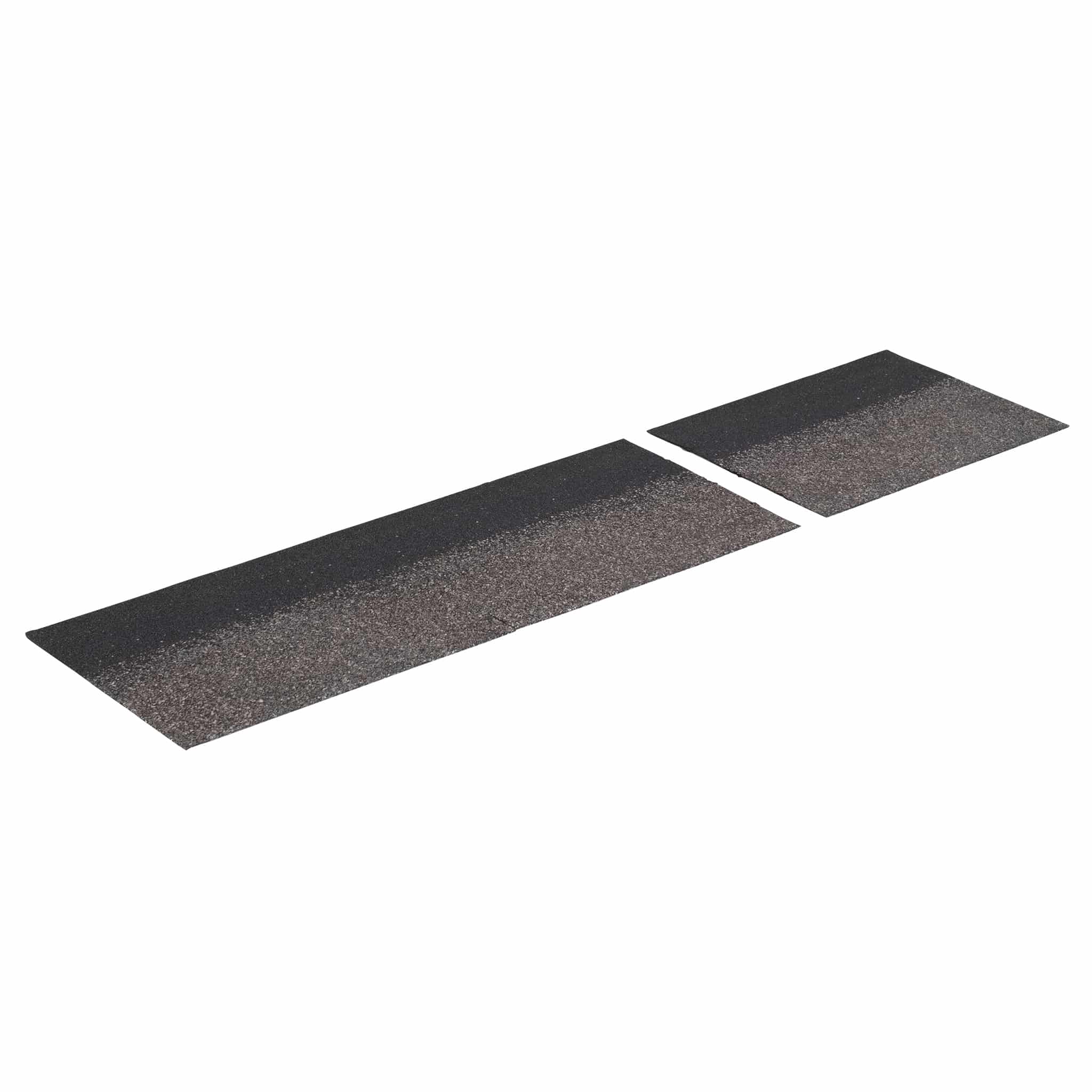

Katepal Eaves and Ridge shingle is used under the first layer of shingles at the eaves and as ridge shingles at the roof ridge. Each sheet can be torn along the perforations to make three ridge shingles. The product should be attached to the substrate with roofing nails or flat-headed screws, roofing nails must penetrate through the substrate. Instructions can be found on the product’s plastic packaging and in the installation guide. The minimum installation temperature is +5°C.
Handling and storage
Katepal products should be stored away from direct sunlight and moisture and handled with care before installation. Pallets must not be stacked. Pay attention to safe lifting practices: pallet lifting instructions can be found on our website katepal.fi
Technical details
Surface Granule
Bottom surface Adhesive
External fire performance according to EN 13501-5 3) BROOF (t1), BROOF (t2), BROOF (t4)
Installation method Self-adhesive, Mechanical fastening
| Colour | Product number | EAN | Package weight | Size of sales unit (m²) | Pieces per pallet |
|---|---|---|---|---|---|
| Red | 11201 | 6417443112018 | 22.5 kg | 40 pcs | |
| Green | 11202 | 6417443112025 | 22.5 kg | 40 pcs | |
| Brown | 11203 | 6417443112032 | 22.5 kg | 40 pcs | |
| Grey | 11204 | 6417443112049 | 22.5 kg | 40 pcs | |
| Black | 11205 | 6417443112056 | 24.5 kg | 40 pcs | |
| Silver Coral | 11244 | 6417443112445 | 22.5 kg | 40 pcs | |
| Graphite Grey | 11254 | 6417443112544 | 22.5 kg | 40 pcs | |
| Bedrock Red | 11241 | 6417443112414 | 22.5 kg | 40 pcs | |
| Moss | 11242 | 6417443112421 | 22.5 kg | 40 pcs | |
| Barkwood Brown | 11243 | 6417443112438 | 22.5 kg | 40 pcs | |
| Copper Brown | 11257 | 6417443112575 | 22.5 kg | 40 pcs | |
| Desert Brown | 11256 | 6417443112568 | 22.5 kg | 40 pcs | |
| Copper | 11287 | 6417443112872 | 22.5 kg | 40 pcs | |
| Terracotta | 11270 | 6417443112704 | 22.5 kg | 40 pcs | |
| Mahogany | 11272 | 6417443112728 | 22.5 kg | 40 pcs | |
| Arundel | 11297 | 6417443112971 | 22.5 kg | 40 pcs | |
| Eilean | 11296 | 6417443112964 | 22.5 kg | 40 pcs |
