Cap sheet
Katepal K-PS 170/5000 Green

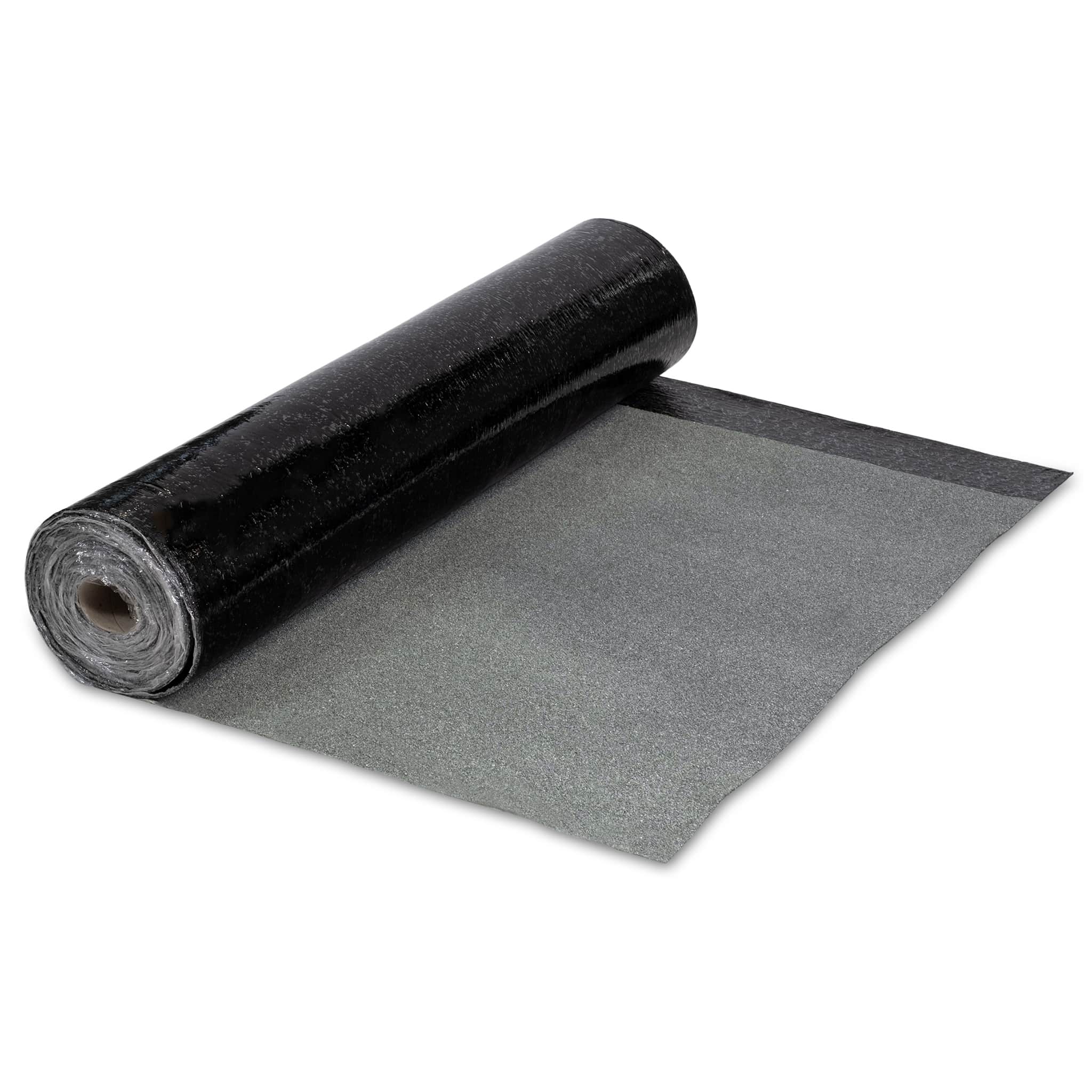

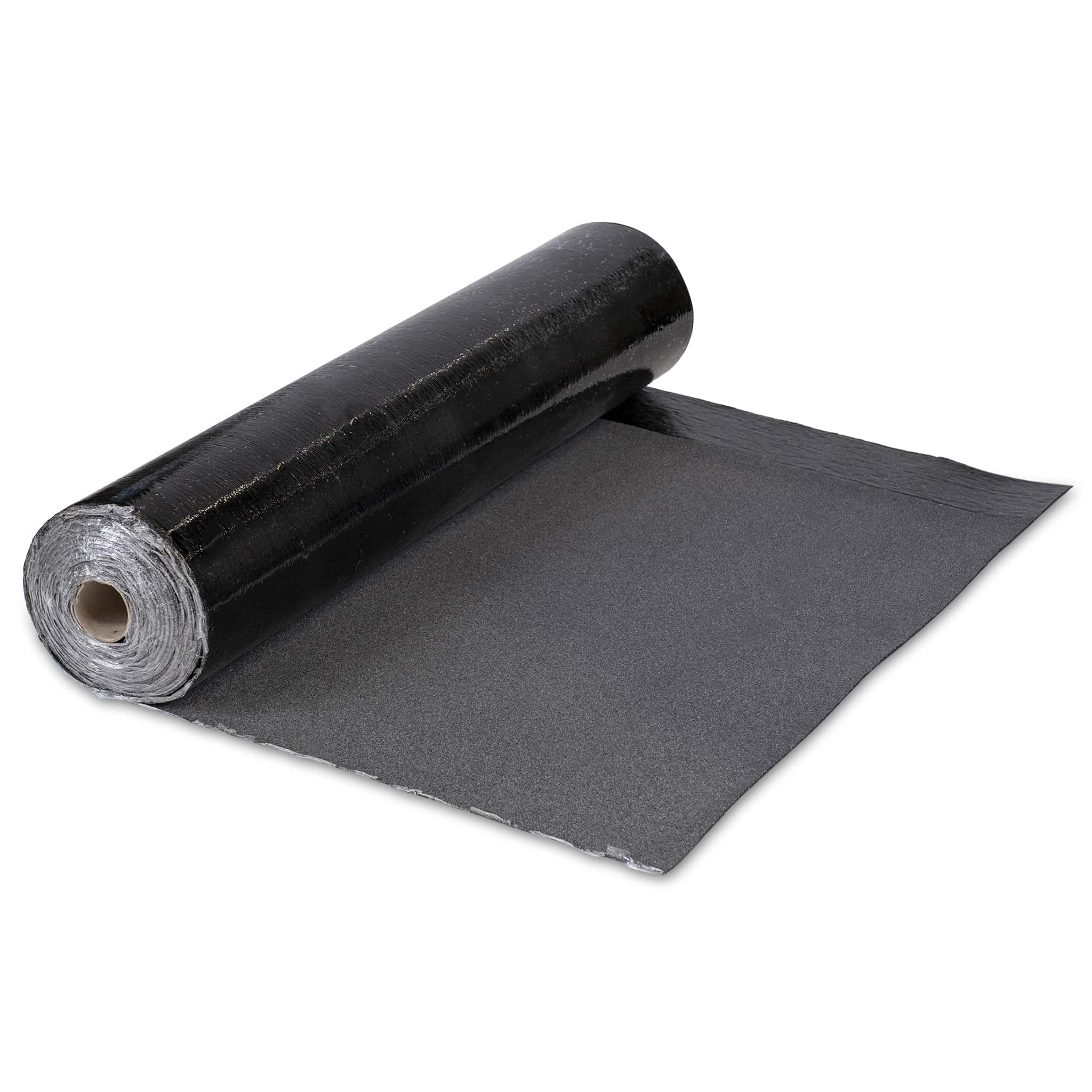

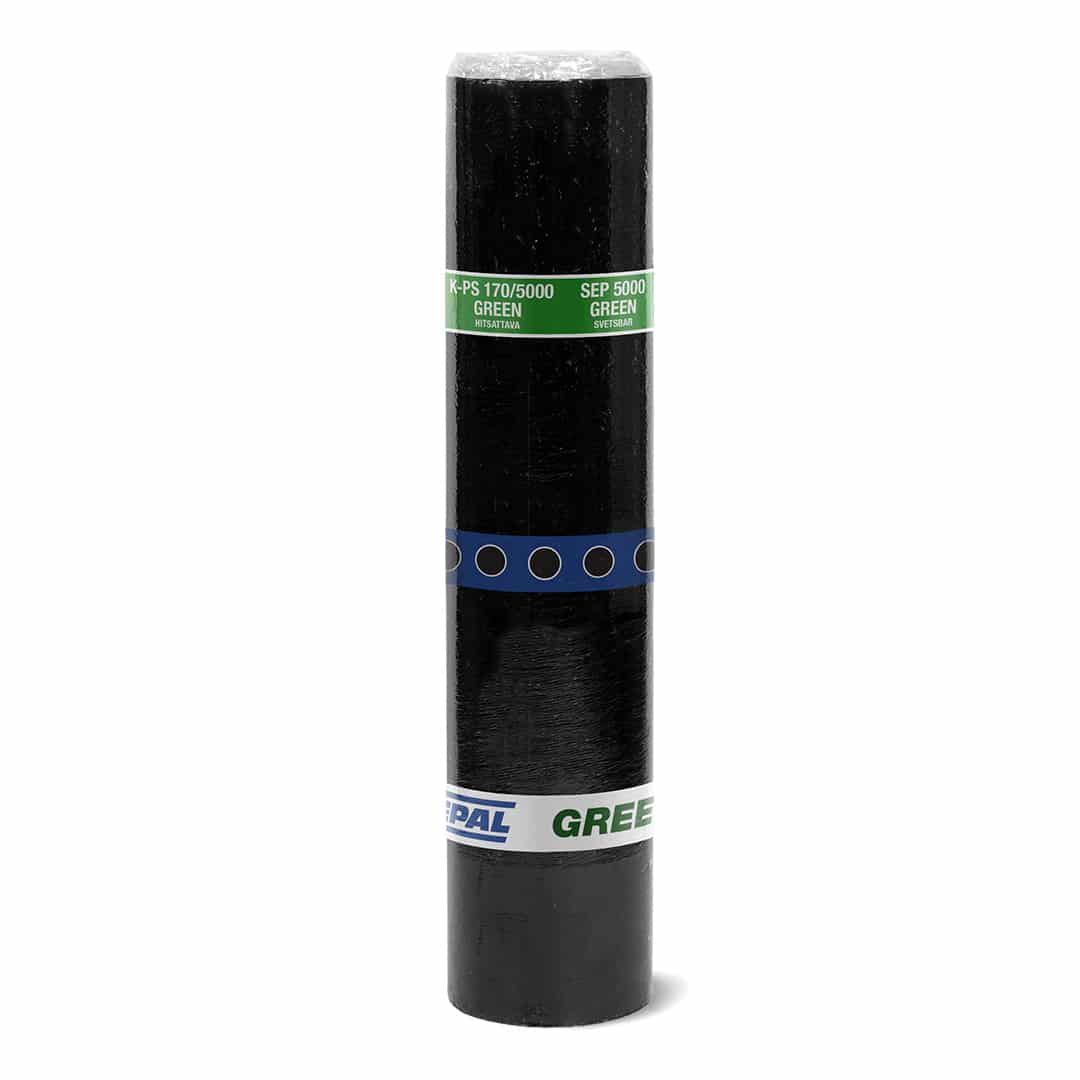

Katepal K-PS 170/5000 Green is a torch-on cap sheet of TL2 classification, reinforcement layer consists of fiberglass-reinforced polyester fabric. It has a colored granules on the top and torch-on bitumen under protective film on the underside. On the top surface is a 100 mm wide overlapping seam.
Grey
Black
Instructions and Materials
Field of use
Katepal K-PS 170/5000 Green is a torch-on cap sheet for multi-layer roof systems. K-PS 170/5000 Green meets TL2 product class requirements. The membrane’s top surface is coated with colored granules. The bottom surface has torch-on bitumen protected by a meltable plastic film. K-PS 170/5000 Green meets Broof(t2) requirements for tested structures and it is part of the Katepal Green product family, which means it is made using renewable raw materials.
Handling and storage
Katepal products should be stored protected from direct sunlight and moisture. The products should be handled with care before installation. Roll products should be stored in an upright position. Rolls transported in a horizontal position should be stored upright after receiving the order. Pallets must not be stacked on top of each other. Pay attention to safe lifting: lifting instructions for the pallets can be found on each pallet (QR code on the plastic wrap of the pallet).
Technical details
Top surface Granule
Bottom surface Torch-on bitumen
Fire classification BROOF (t2)
Product class TL2
Installation method Hot work, Torch-on
| Colour | Product number | EAN | Package weight | Size of sales unit (m²) | Pieces per pallet | Dimensions |
|---|---|---|---|---|---|---|
| Grey | 26407 | 6417443264076 | 40 kg | 7.2 m² | 25 pcs | 1 x 8 m |
| Black | 26509 | 6417443265097 | 43 kg | 7.2 m² | 25 pcs | 1 x 8 m |
