DIY Cap sheet
Katepal TopTite 3° NXT

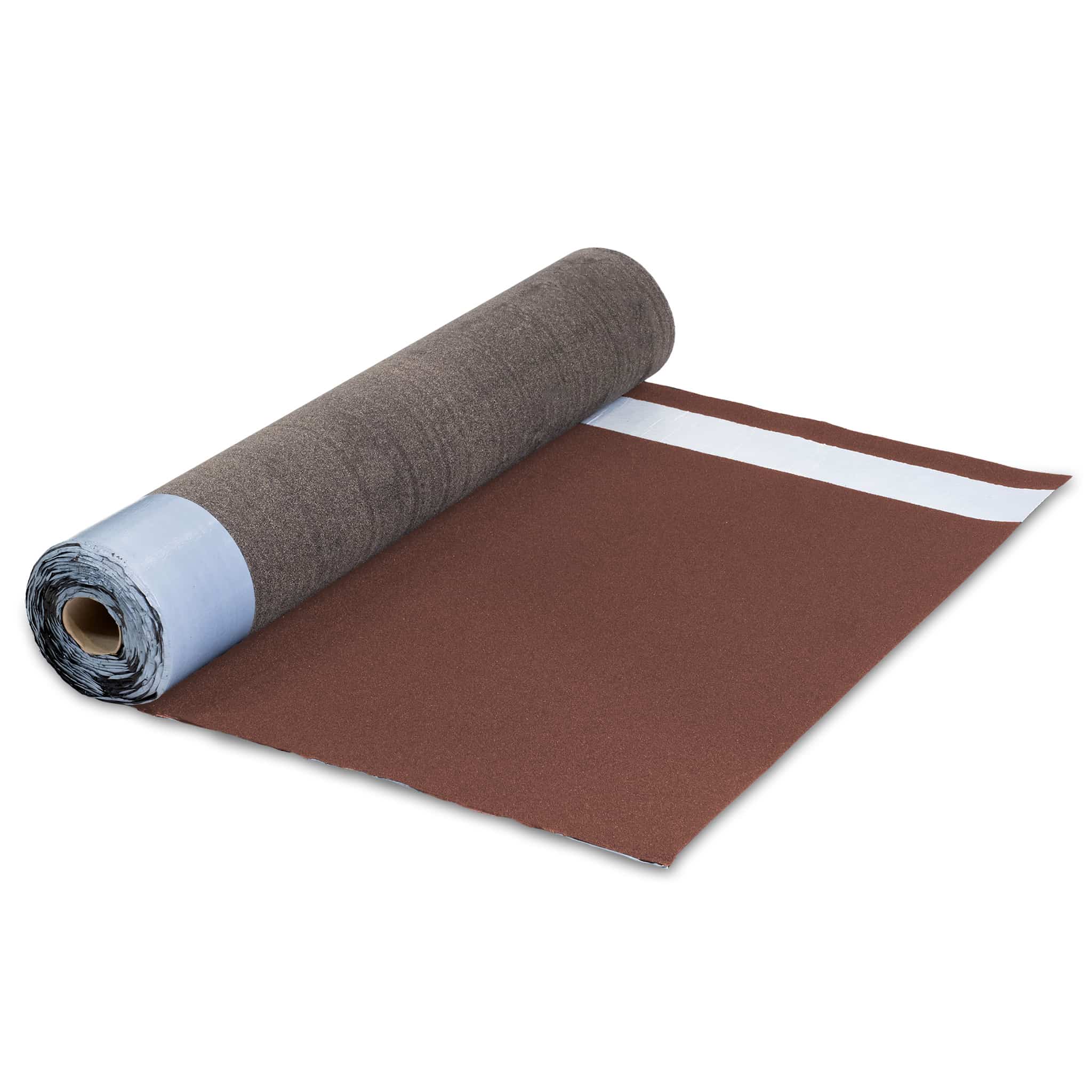

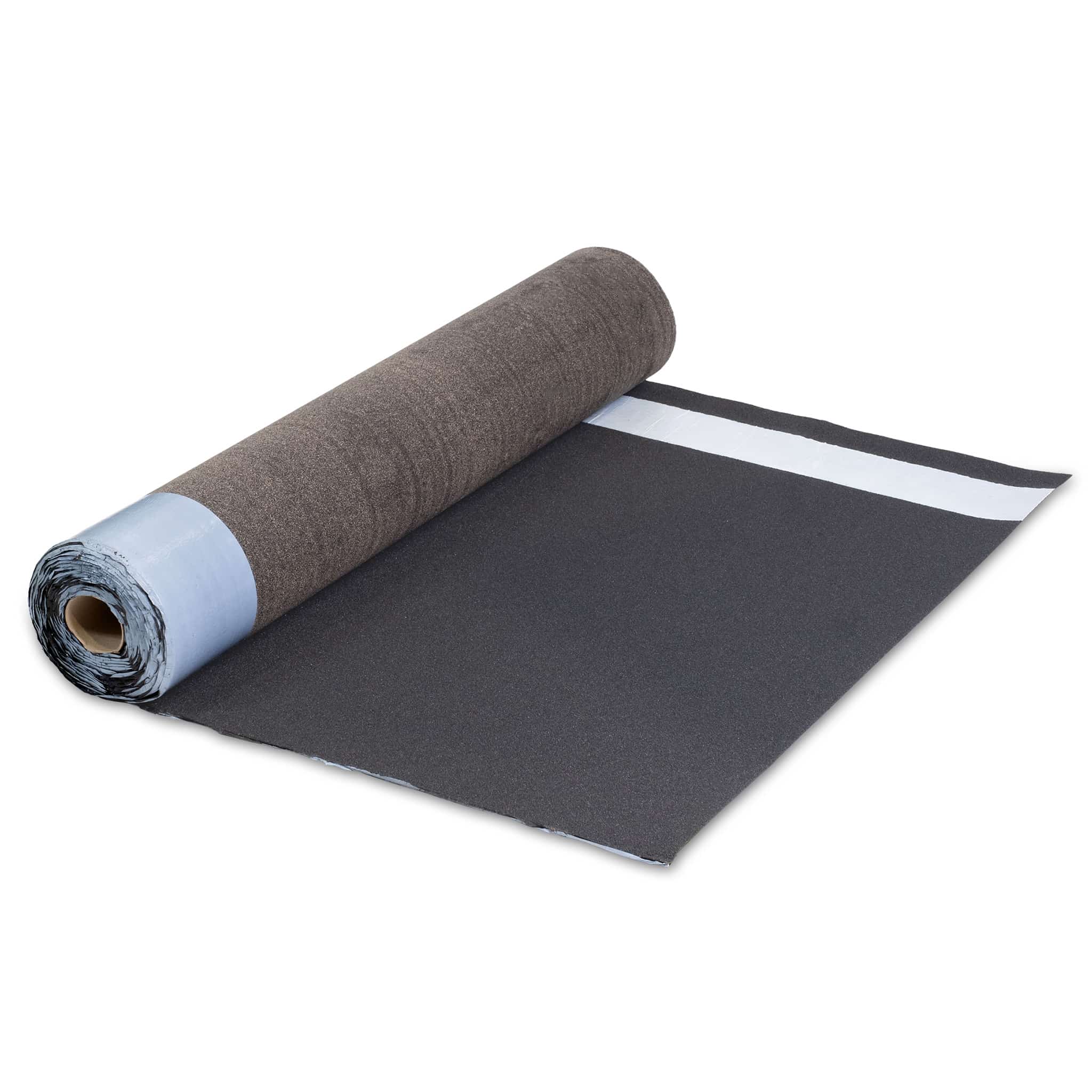

Katepal TopTite 3° NXT is a DIY cap sheet with a colored granule on the top and sand on the bottom surface. There is a 150 mm wide adhesive strip on the top surface of one edge and the bottom surface of the opposite edge. Next to the adhesive strip is a nailing area to help installation.
Red
Green
Brown
Grey
Black
Instructions and Materials
Field of use
Katepal TopTite 3° NXT is a DIY cap sheet suitable as a single-layer applications for roofs steeper than 1:20, and does not require an underlay membrane. Product is suitable also on an old single-layer applications. It is mechanically attached to the substrate from the nailing area on the top surface. The minimum installation temperature is +5°C. The reinforcement layer is polyester, and it is part of the Katepal NXT product family, meaning it is manufactured using renewable raw materials.
Handling and storage
Katepal products should be stored protected from direct sunlight and moisture. The products should be handled with care before installation. Roll products should be stored in an upright position. Rolls transported in a horizontal position should be stored upright after receiving the order. Pallets must not be stacked on top of each other. Pay attention to safe lifting: lifting instructions for the pallets can be found on each pallet (QR code on the plastic wrap of the pallet).
Technical details
| Colour | Product number | EAN | Package weight | Size of sales unit (m²) | Pieces per pallet | Dimensions |
|---|---|---|---|---|---|---|
| Red | 30111 | 6417443301115 | 31 kg | 5.95 m² | 24 pcs | 1 x 7 m |
| Green | 30112 | 6417443301122 | 31 kg | 5.95 m² | 24 pcs | 1 x 7 m |
| Brown | 30113 | 6417443301139 | 31 kg | 5.95 m² | 24 pcs | 1 x 7 m |
| Grey | 30114 | 6417443301146 | 31 kg | 5.95 m² | 24 pcs | 1 x 7 m |
| Black | 30115 | 6417443301153 | 33 kg | 5.95 m² | 24 pcs | 1 x 7 m |
