Single-layer cap sheet
Katepal Tupla

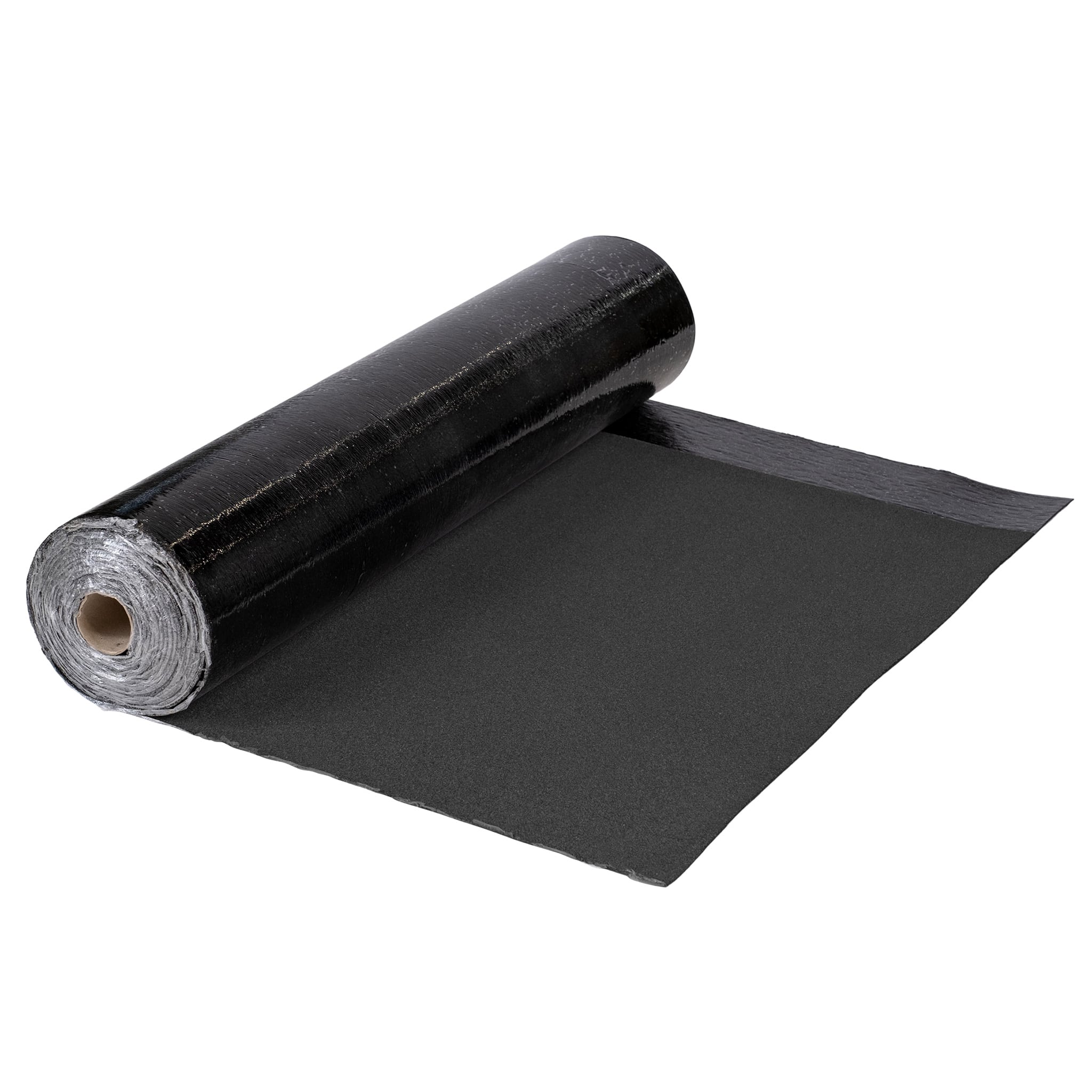

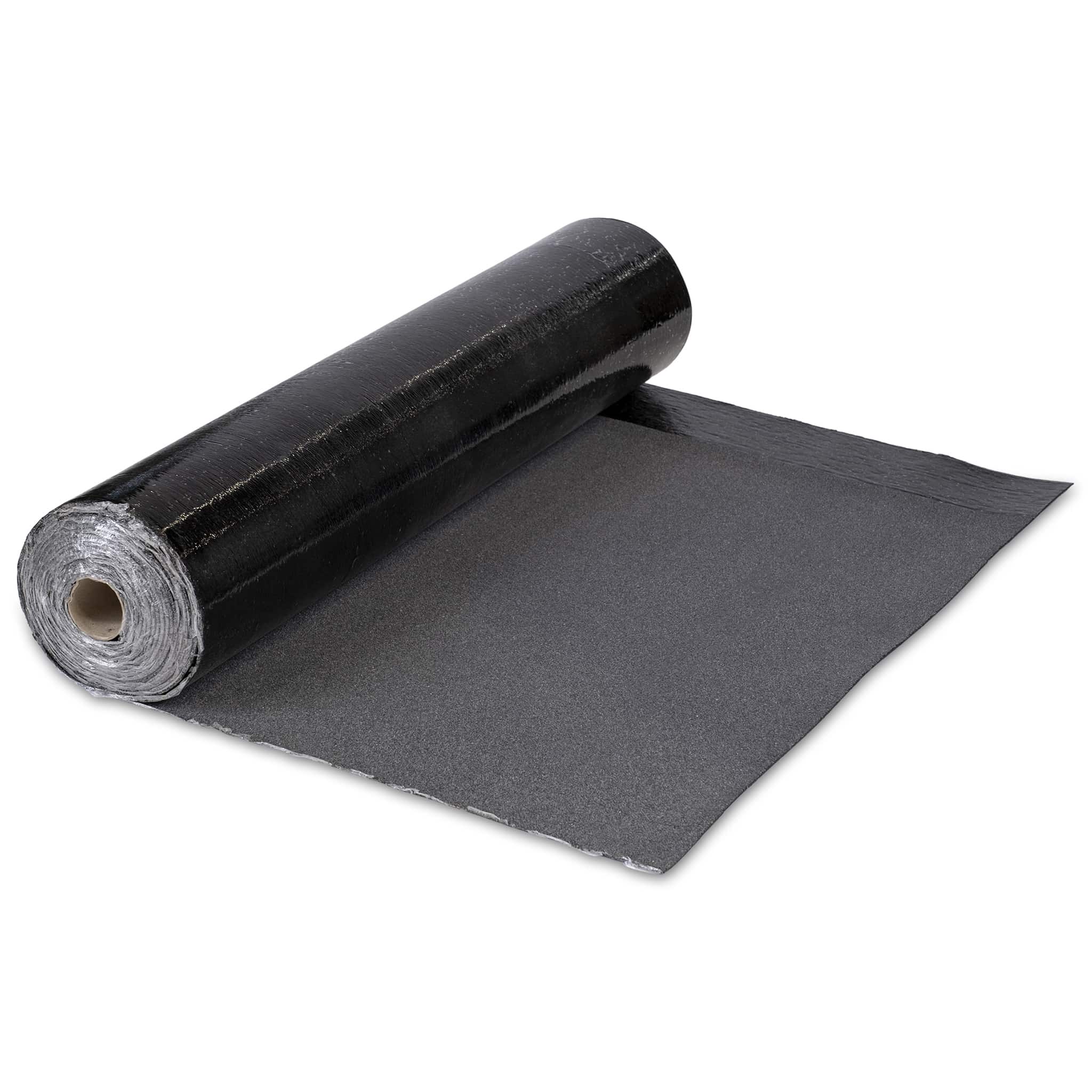

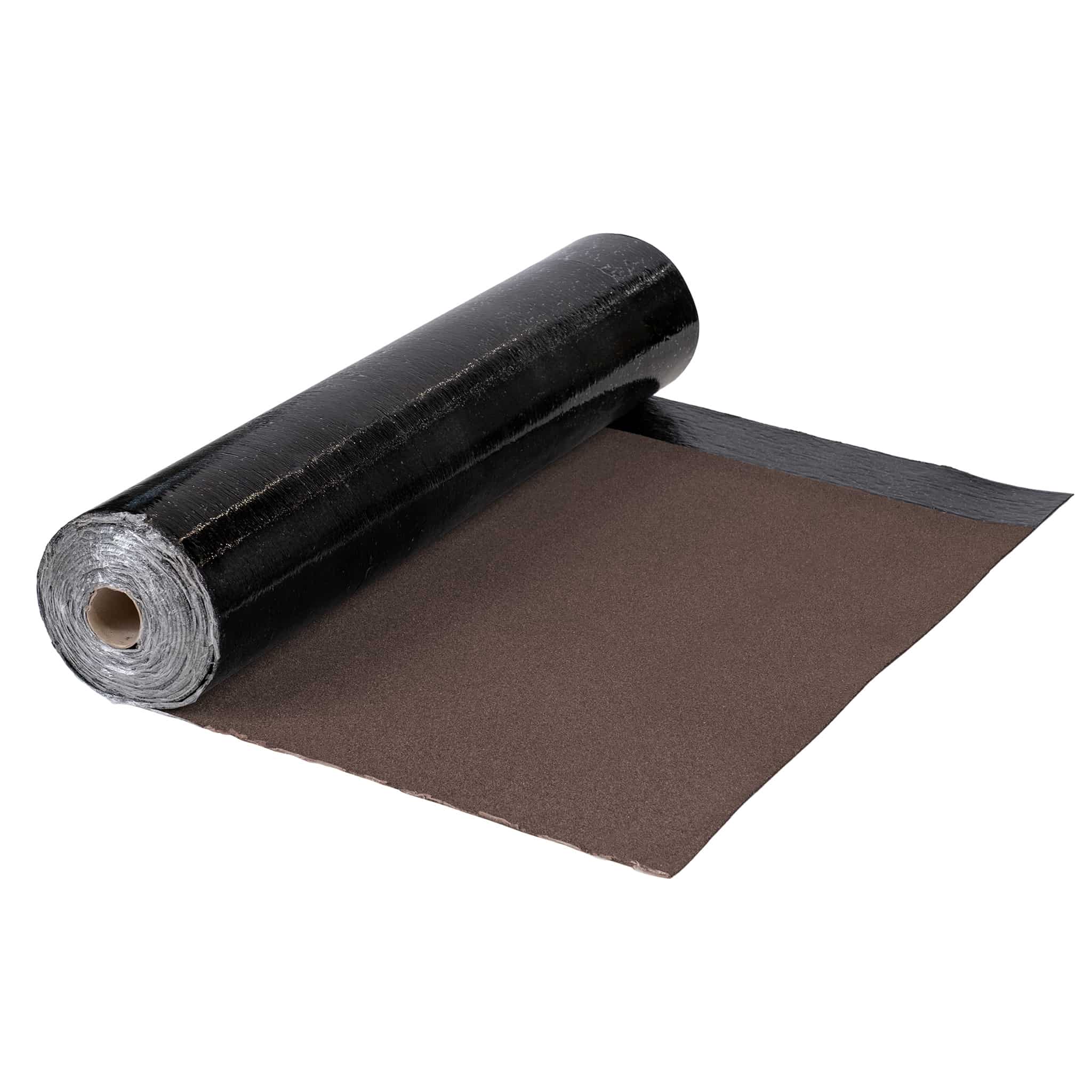

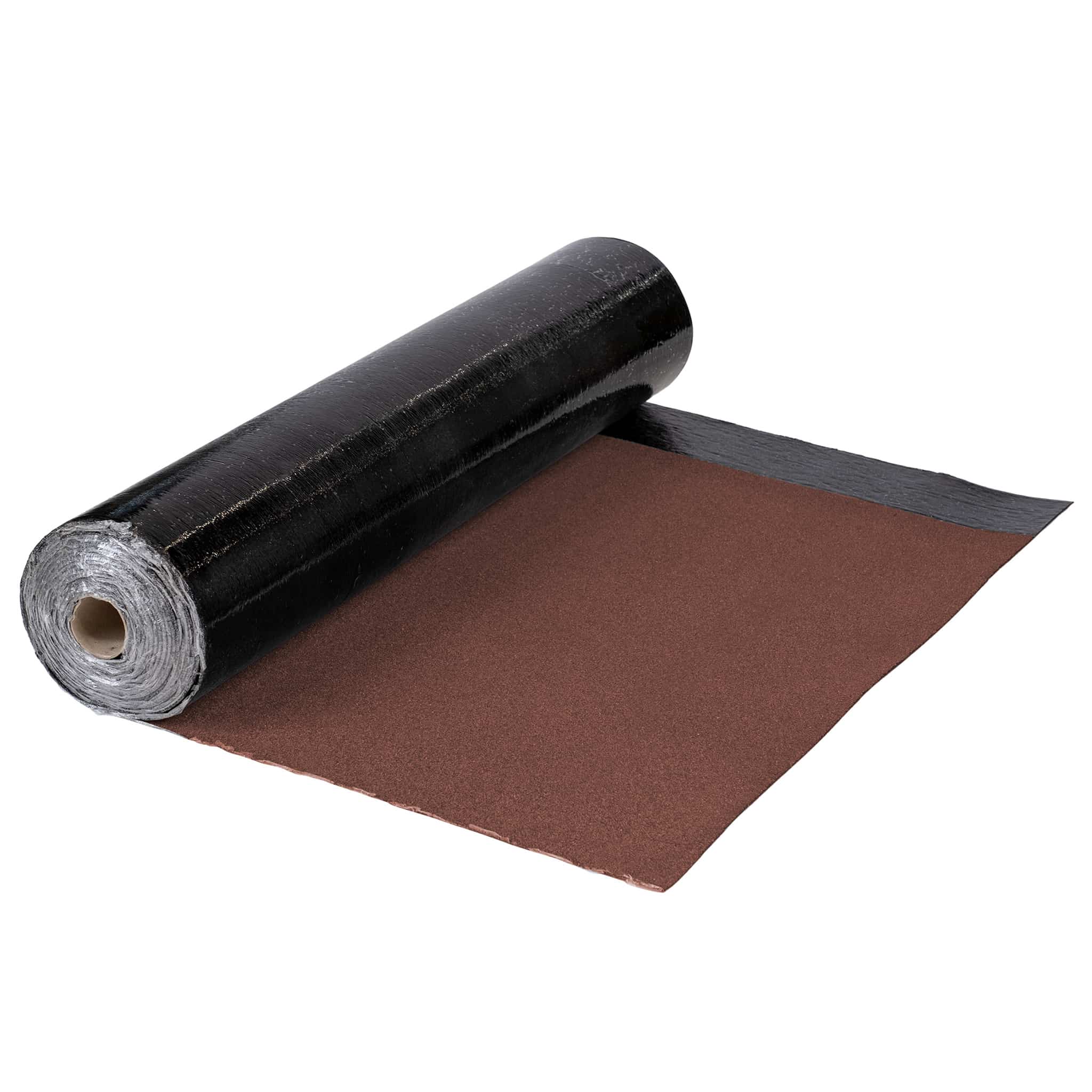

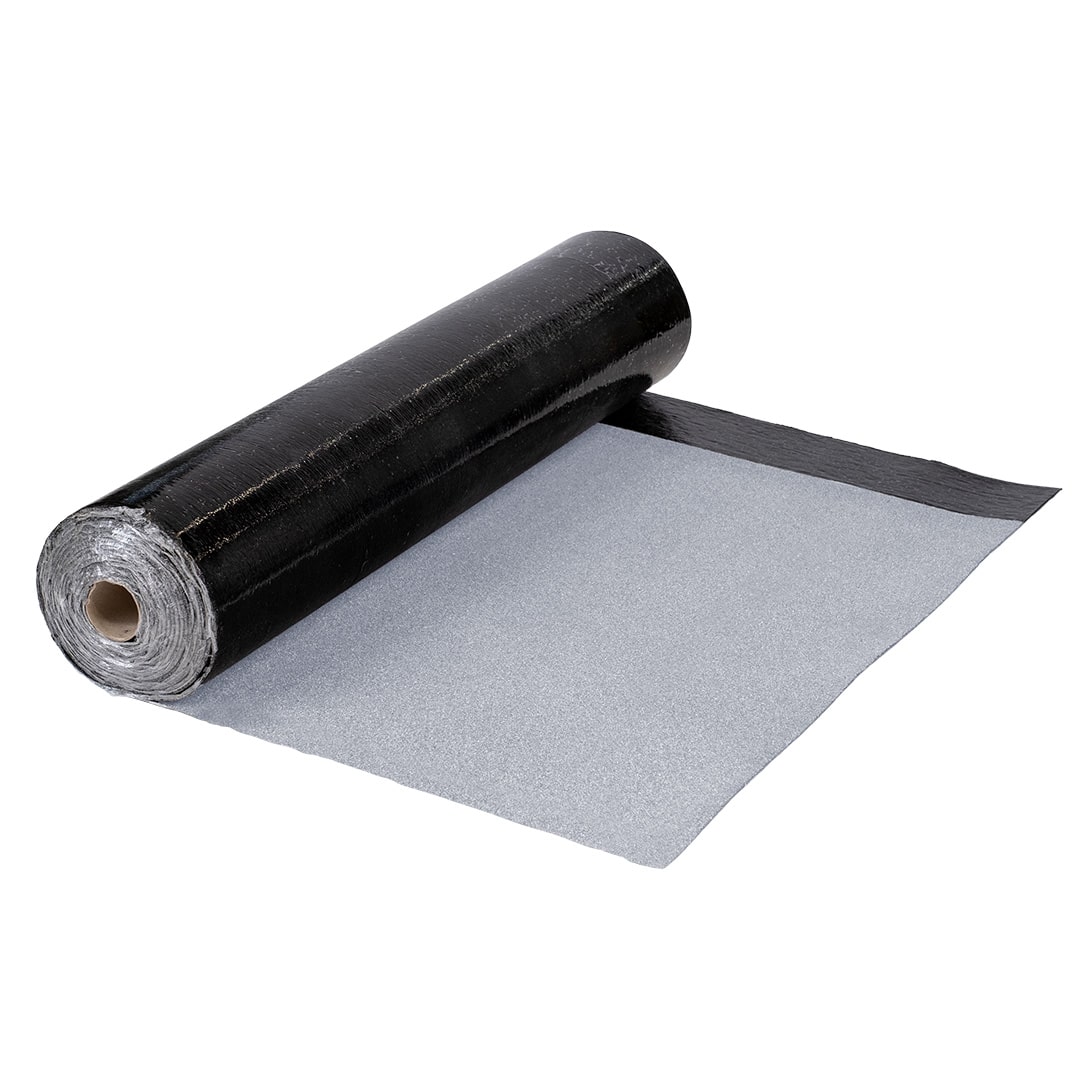

Katepal TUPLA is a torch-on, TL1-classified cap sheet with a coloured-granule finish and a 120 mm wide overlapping seam. On the bottom surface it has torch-on bitumen under a thin meltable protective plastic film.
White
Light Grey
Red
Green
Brown
Grey
Black
LESSNOX
Krystal
Instructions and Materials
Field of use
Katepal TUPLA is a TL1-classified cap sheet for single-layer roofing. It has a coloured-granule finish and a fibreglass-reinforced polyester fabric carrier. The bottom surface has torch-on bitumen covered by a meltable protective plastic film. The product should be fully bonded onto the underlay membrane or substrate. TUPLA meets Broof(t2) requirements for tested structures.
Handling and storage
Katepal products should be stored away from direct sunlight and moisture and handled with care before installation. Roll products should be stored in an upright position – rolls transported horizontally should be turned upright after receiving the order. Pallets must not be stacked. Pay attention to safe lifting practices: pallet lifting instructions can be found via the QR code on the pallet’s plastic wrap.
Technical details
Surface Granule
Bottom surface Torch-on bitumen
External fire performance according to EN 13501-5 3) BROOF (t2)
Installation method Hot work, Mechanical fastening, Torch-on
| Colour | Product number | EAN | Package weight | Size of sales unit (m²) | Pieces per pallet | Dimensions |
|---|---|---|---|---|---|---|
| White | 30468 | 6417443304680 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Light Grey | 30458 | 6417443304581 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Red | 30411 | 6417443304116 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Green | 30302 | 6417443303027 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Brown | 30308 | 6417443303089 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Grey | 30408 | 6417443304086 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Black | 30508 | 6417443305083 | 45 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| LESSNOX | 30417 | 6417443304178 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
| Krystal | 30510 | 6417443305106 | 43 kg | 7.04 m² | 20 pcs | 1 x 8 m |
